라이빅을 통해 기술을 느껴보세요

햅틱이 고급스러운 경험을 선사합니다

햅틱 피드백 기술은 디지털 기기에 진동이나 힘을 발생시켜 사용자가 다양한 터치를 느낄 수 있도록 합니다.
햅틱은 "터치"를 뜻하는 그리스 형용사 "haptesthai"에서 유래되었습니다.
컴퓨터 가상경험과 같이 사용자에게 더욱 현실적인 정보를 전달하는 기술입니다.

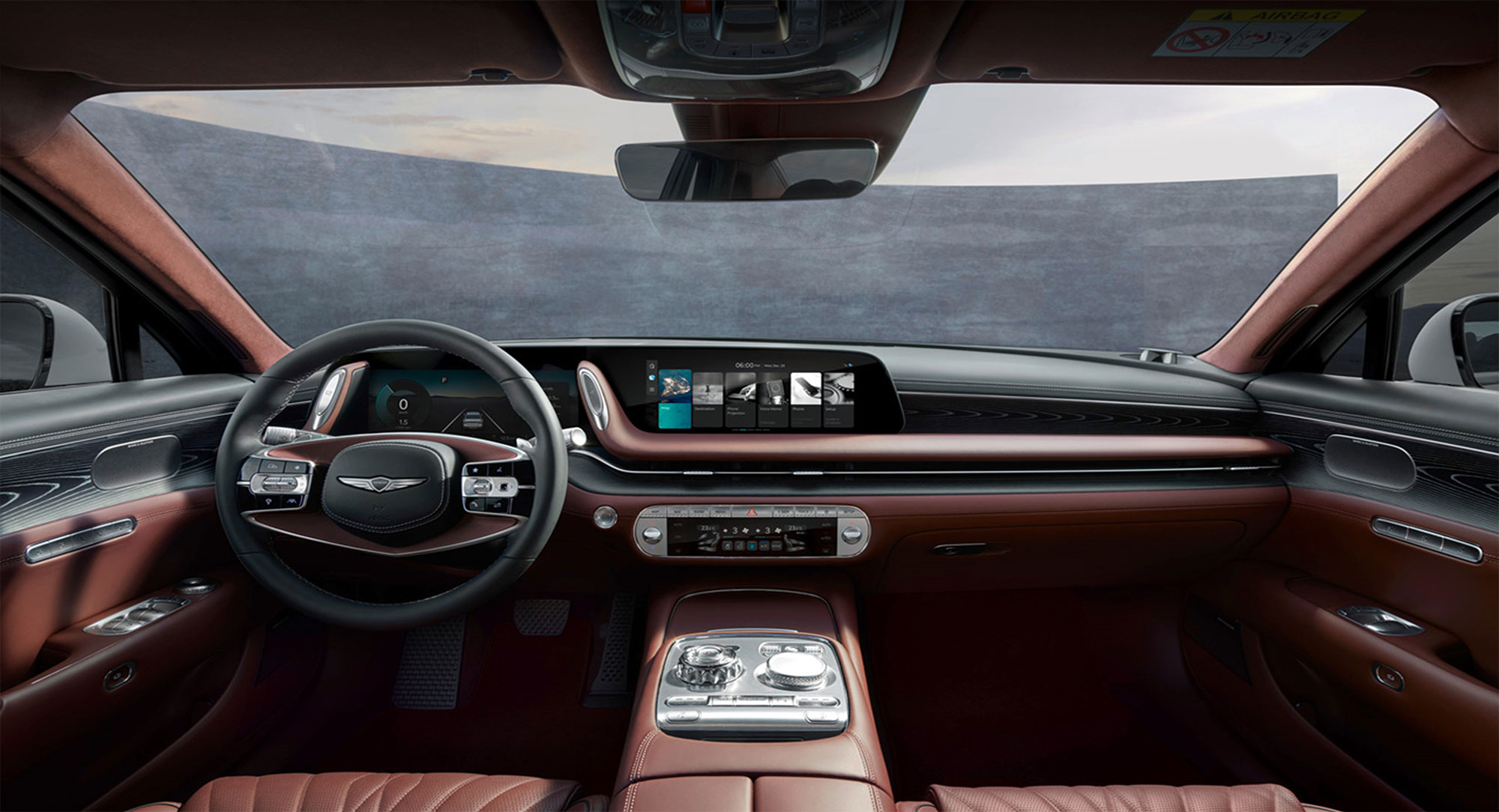

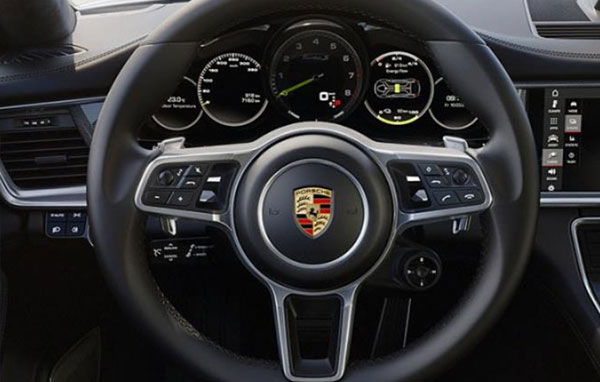

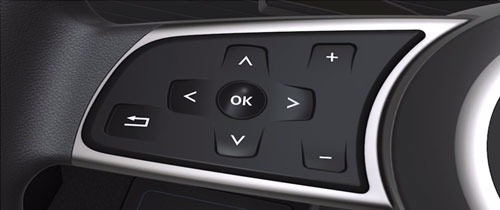

스티어링 휠 햅틱 피드백

휠에 적용된 햅틱 피드백 시스템으로 운전자가 핸들을 돌리면 작은 진동이나 힘의 저항을 느낄 수 있어, 보다 정밀한 핸들링과 차량 상태에 대한 정보를 얻을 수 있습니다.
운전의 안전성과 편의성을 향상시키며, 특히 전기차나 자율주행 차량에서 중요한 역할을 합니다.

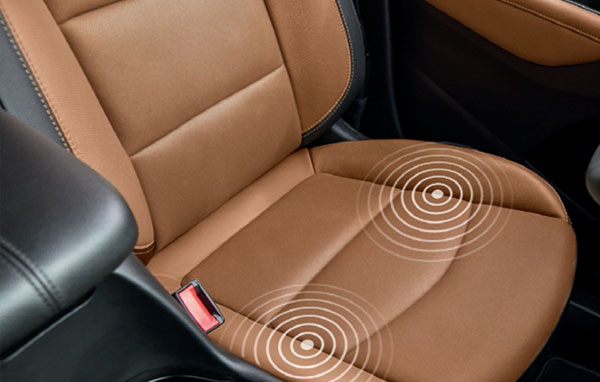

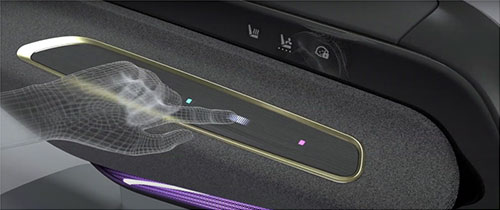

햅틱 시트

운전석과 조수석에 햅틱 기능이 적용된 시트에는 차량의 주행 상황이나 안전 경고 등에 맞춰 진동을 발생시킬 수 있습니다.
운전자는 이를 통해 차량 상태를 직감적으로 파악할 수 있어 사고 예방에 도움이 됩니다.

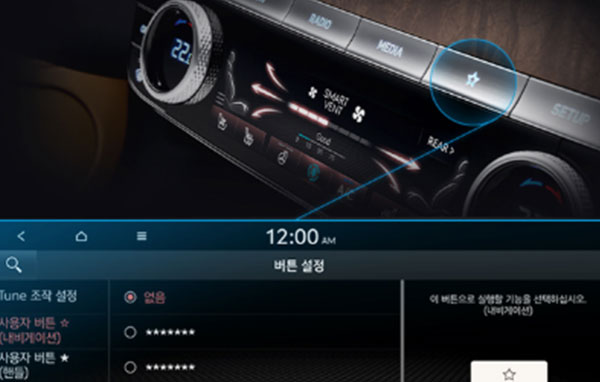

햅틱 컨트롤 버튼

버튼을 누를 때 진동이나 클릭감을 느낄 수 있어 조작이 더욱 직관적이고 정교해집니다.
이를 통해 운전자가 차량을 보지 않고도 버튼을 쉽게 찾고 제어할 수 있어 운전 집중도를 높일 수 있습니다.

Smart Window Switch

LBV-101040

S/W Remote Control

LBV-1010440

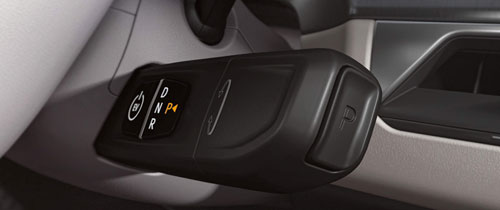

Shift by Wire

LBV-101040

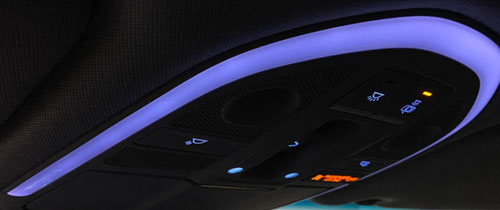

Room Lamp

LBV101560

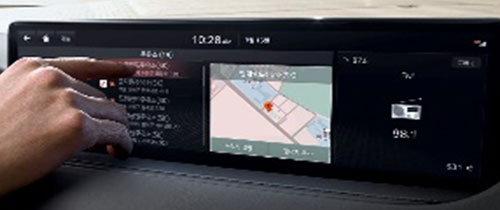

Infortainment System

LBV-332313/333309

Center Garnish

LBV-101040/101560

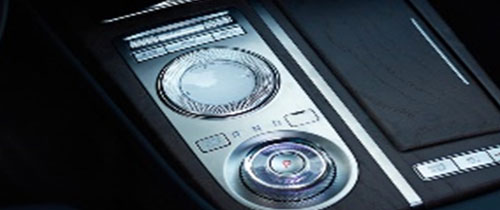

Center Keyboard Switch

LBV-332313/122792

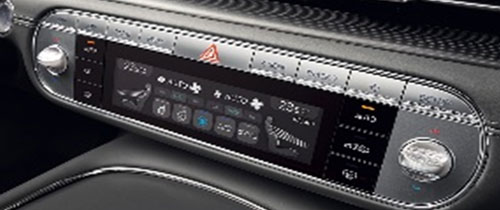

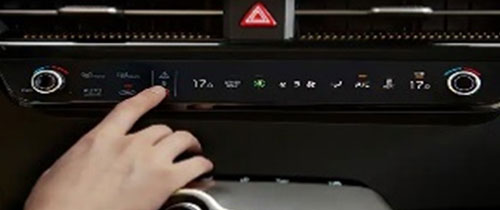

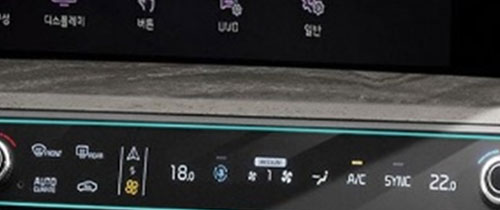

HVAC Controller

LBV-332313

Shift by Wire

LBV-101040

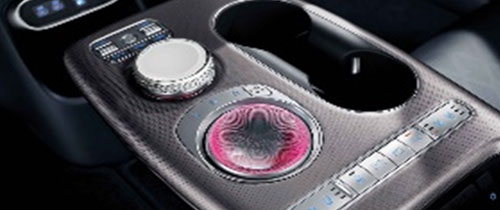

Center Control Panel

LBV-122792

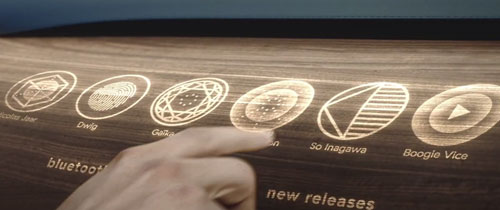

Dashboard Garnish

LBV-101040/101560

Lighbig's LRA Line up for Automotive HMI haptic Display

Spec. VCM (Voice Coil Motor / High Definition LRA_Linear Resonance Actuator)
LBV-333309H LBV-332313 LBV-122792 LBV-101950 LBV-101560 LBV-101040
Appearance
Size 33.0(L) x 33.0(W) x 9.0(H) 33.0(L) x 23.0(W) x 13.0(H) 27.0(L) x 12.0(W) x 9.2(H) 19.0(L) x 10.0(W) x 5.0(H) 15.0(L) x 10.0(W) x 6.0(H) 10.0(L) x 10.0(W) x 4.0(H)
Rated Voltage 6.0Vpp (2.12Vrms) 6.0Vpp (2.12Vrms) 7.4Vpp (2.62Vrms) 5.5Vpp (1.94Vrms) 4.2Vpp (1.5Vrms) 2.8Vpp (1.0Vrms)
Resonant Frequency 180Hz 130Hz 120Hz 175Hz 190Hz 190Hz
Acceleration (@100, Resonant Freq., Rated Voltage, Sweep) 16Gpp (5.7Grms) @ 100g 15Gpp (5.3Grms) @ 100g 11.0Gpp (4.0Grms) @100g 10.0Gpp (4.0Grms) @100g 8.1Gpp (2.86Grms) @100g 7.1Gpp (2.5Grms) @100g
Temperature Condition Automotive Automotive Automotive Automotive Automotive Automotive
Application Display/HVAC/SEAT Display/HVAC Display/HMI Switch Display/HMI Switch Display/HMI Switch Display/HMI Switch
LBV-333309H
Introduction
  • 1. Features
    • Package(mm) : 33(L) x 33(W) x 9.0(H)
    • Input Voltage Range - Rated Voltage (Continues) : AC 6.0Vpp (2.1Vrms)
    • Input CurrentRange - Rated Current : Max. 100mA
    • Powerful Vibration Acceleration - 18.1Gpp (6.4Grms) @100g, Sweep
    • Fast Response Time - Response Time : 20ms or less
  • 2. Applications
    • Automotive HMI Touch Switch
    • Automotive Haptic Display
    • Infotainment Haptic Tools
    • Haptic for Sound
    • VR & AR Accessories
    • Simulators for Medical Training
  • 3. Description
    The LBV-333309 Haptic actuator is designed to output sensitive haptic feedback depending on the input waveform.
    It consumes lower power than other Haptic actuators and vibrates over a wide frequency range.
    It is also easy to control haptic feedback with quick response speed, and consistent performance makes it the best product for making the haptic application you want.
    In addition to the haptic vibration feedback, LBV-333309 can produce a sound like a speaker.

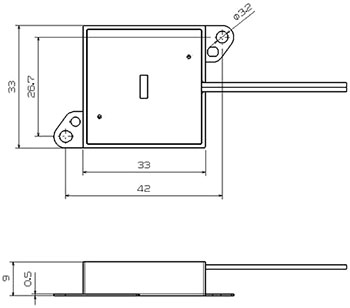

  • 4. Dimension (Unit:mm)
Specifications
1. Environmental Conditions
Standard Conditions
Parameter Value Unit
Temperature 15~35 °C
Humidity 45~85 RH %
Atmospheric pressure 1013±40 hPa
Actuator Positioning Horizontal
Operating Conditions
Parameter Value Unit
Temperature -40~85 °C
Humidity 5~95 RH %
Storage Conditions
Parameter Value Unit
Temperature -40~105 °C
Humidity 5~95 RH %
2. Product performance
Electrical Characteristics
Parameter Value Unit
Rated Voltage (Continues) 6.0 (2.1) Vpp (Vrms)
Rated Current (@Resonant Freq., Rated voltage) 100 mA
Resonant Frequency (@100g, Sweep) 180±10% Hz
Vibration Acceleration(1)
(@100g, Resonant Freq., Rated Voltage, Sweep)		 18.1(6.4)±10% Gpp (Grms)
Response Time (From 0 to 50% Acceleration) 20 ms
Life Cycle (@ 180Hz, 16Vpp, 100g)
*1time(0.5s) = On 0.006s(Sinewave 1.0cycle) + Off 0.494s		 1,000,000 times

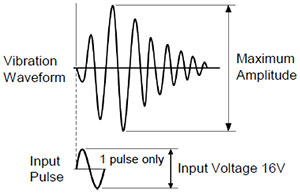

Vibration Acceleration for Haptic(2)
(@100g, 16Vpp, 180Hz Sinewave 1.0cycle)		 11.5(4.1)±10% Gpp (Grms)
Insulation Resistance (DC 100V) 10M Over Ω
Internal Resistance 12.5±10% Ω
(1) Measurement using sweep measurement method of BAKO equipment.
(2) Vibration Acceleration for Haptic
Mechanical Characteristics
Parameter Value Unit
Dimension (L/W/H) 33.0 / 33.0 / 9.0 mm
Unit Weight 36±1.0 g
Noise Analysis(1) Touch MAX. 35 dB
THD MAX. 25 %
Band MAX. 35 dB
(1) 'Noise Analysis' is based on calculations by the algorithms of the BaKo equipment (BK2112).
3. Pin Configurations and Functions
Pin Name Description
1 Input(+) Positive Voltage Input
2 Input(-) Negative Voltage Input

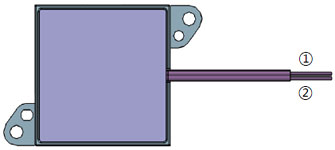

  • [ LBV-333309Top View ]
  • [ LBV-333309 3D View ]

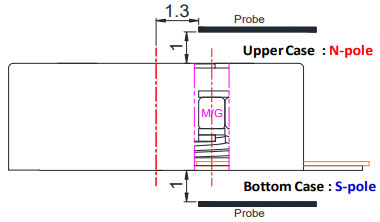

  • [ Vibration Direction ]

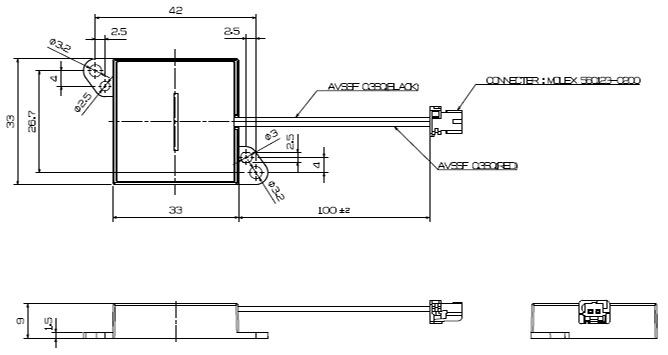

Outline Drawing
Layout (Unit:mm)
Packaging Information
1. Standard Packaging Quantity & Dimension
  • [ 1Tray : TBD ]
  • [ Bundle : TBD ]
  • [ 1Box : TBD ]
  • Packaging Dimension Q'ty
    Tray TBD
    Box TBD
2. Cautions
  • Available Range - Pay attention to the voltage and current ranges applied and use the actuator based on the specifications. Otherwise the actuator life and performance would considerably be reduced.
  • Carriage of Actuator - Please move the actuator carefully to avoid any damage to the actuator body or its characteristic caused by serious collision.
  • Storage - For proper operation, storage and operating environment must not contain corrosive gases. In the mechanical structure, existence of corrosive gases may cause no vibration of actuator.
  • Attentions in Using Actuator - Do not place actuator near magnetic objects or contact the surface which will affect the performance of the actuator.
    - Please do not store actuator in high and low temperature and high humidity. Condensation must be avoided in using or opening the package of the actuator.
  • Others - LIGHBIG owns the professional technical team to solve problems regarding new haptic products and applications. We are always ready to build good cooperation with you and solve any problems for you.
LBV-332313
Introduction
  • 1. Features
    • Package(mm) : 33(L) x 23(W) x 13(H)
    • Input Voltage Range - Rated Voltage (Continues) : AC 6.0Vpp (2.1Vrms)
    • Input CurrentRange - Rated Current : Max. 100mA
    • Powerful Vibration Acceleration - 14.7Gpp (5.2Grms) @100g, Sweep
    • Fast Response Time - Response Time : 15ms or less
  • 2. Applications
    • Automotive HMI Touch Switch
    • Automotive Haptic Display
    • Infotainment Haptic Tools
    • Haptic for Sound
    • VR & AR Accessories
    • Simulators for Medical Training
  • 3. Description
    The LBV-332313 Haptic actuator is designed to output sensitive haptic feedback depending on the input waveform.
    It consumes lower power than other Haptic actuators and vibrates over a wide frequency range.
    It is also easy to control haptic feedback with quick response speed, and consistent performance makes it the best product for making the haptic application you want.
    In addition to the haptic vibration feedback, LBV-332313 can produce a sound like a speaker.
  • 4. Dimension (Unit:mm)
Specifications
1. Environmental Conditions
Standard Conditions
Parameter Value Unit
Temperature 20~30 °C
Humidity 40~80 RH %
Atmospheric pressure 1013±40 hPa
Actuator Positioning Horizontal
Operating Conditions
Parameter Value Unit
Temperature -40~85 °C
Humidity 5~95 RH %
Storage Conditions
Parameter Value Unit
Temperature -40~105 °C
Humidity 5~95 RH %
2. Product performance
Electrical Characteristics
Parameter Value Unit
Rated Voltage (Continues) 6.0 (2.1) Vpp (Vrms)
Rated Current (@Resonant Freq., Rated voltage) 100 mA
Resonant Frequency (@100g, Sweep) 130±10% Hz
Vibration Acceleration(1)
(@100g, Resonant Freq., Rated Voltage, Sweep)		 14.7(5.2)±10% Gpp (Grms)
Response Time (From 0 to 50% Acceleration) 15 ms
Life Cycle (@ 130Hz, 16Vpp, 100g)
*1time(0.5s) = On 0.008s(Sinewave 1.0cycle) + Off 0.492s		 1,000,000 times
Vibration Acceleration for Haptic(2)
(@100g, 16Vpp, 130Hz Sinewave 1.0cycle)		 11.2(4.0)±10% Gpp (Grms)
Insulation Resistance (DC 100V) 10M Over Ω
Internal Resistance 12.5±10% Ω
(1) Measurement using sweep measurement method of BAKO equipment.
(2) Vibration Acceleration for Haptic
Mechanical Characteristics
Parameter Value Unit
Dimension (L/W/H) 33.0 / 23.0 / 13.0 mm
Unit Weight 29±1.0 g
Noise Analysis(1) Touch MAX. 35 dB
THD MAX. 25 %
Band MAX. 35 dB
(1) 'Noise Analysis' is based on calculations by the algorithms of the BaKo equipment (BK2112).
3. Pin Configurations and Functions
Pin Name Description
1 Input(+) Positive Voltage Input
2 Input(-) Negative Voltage Input
  • [ LBV-302313Top View ]
  • [ LBV-302313 3D View ]
  • [ Vibration Direction ]

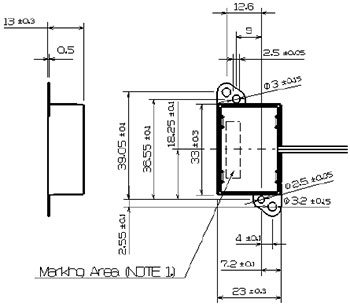

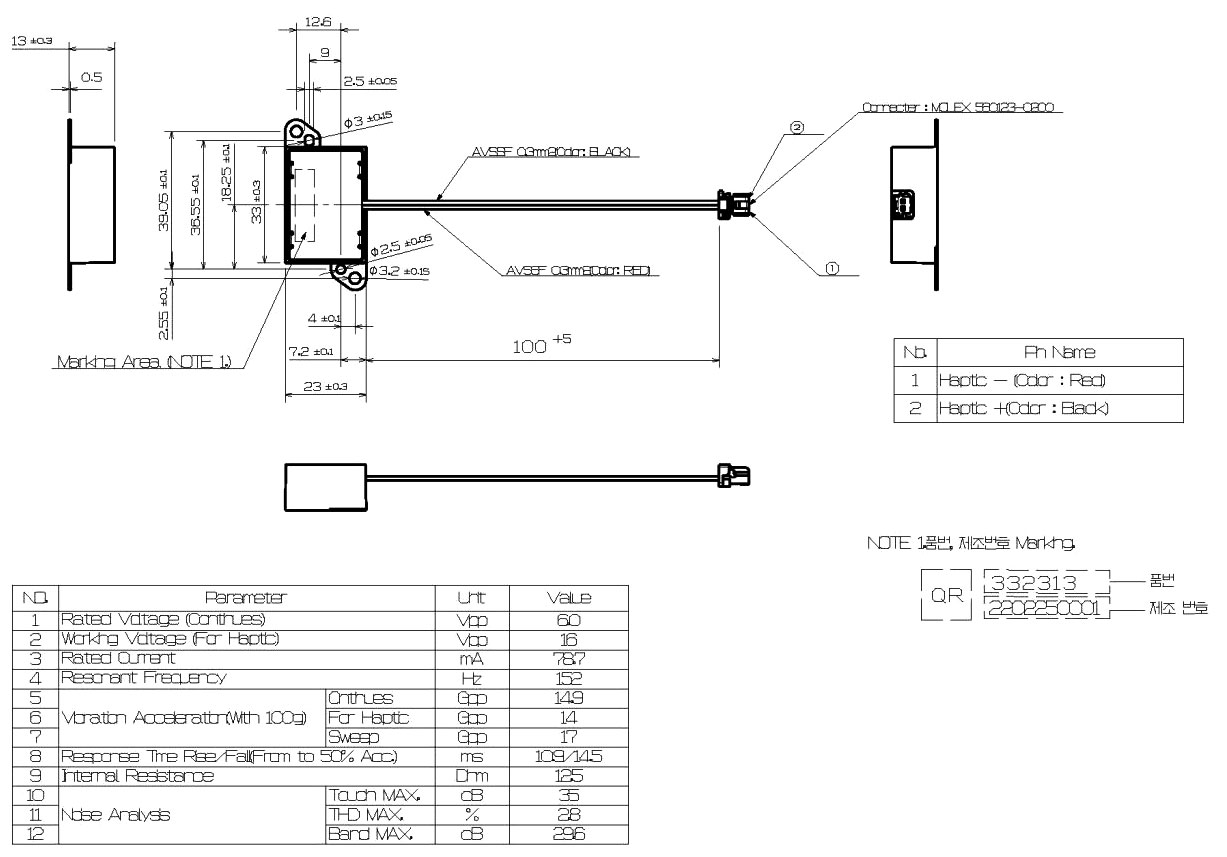

Outline Drawing
Layout (Unit:mm)
Packaging Information
1. Standard Packaging Quantity & Dimension
  • [ 1Tray : TBD ]
  • [ Bundle : TBD ]
  • [ 1Box : TBD ]
  • Packaging Dimension Q'ty
    Tray TBD
    Box TBD
2. Cautions
  • Available Range - Pay attention to the voltage and current ranges applied and use the actuator based on the specifications. Otherwise the actuator life and performance would considerably be reduced.
  • Carriage of Actuator - Please move the actuator carefully to avoid any damage to the actuator body or its characteristic caused by serious collision.
  • Storage - For proper operation, storage and operating environment must not contain corrosive gases. In the mechanical structure, existence of corrosive gases may cause no vibration of actuator.
  • Attentions in Using Actuator - Do not place actuator near magnetic objects or contact the surface which will affect the performance of the actuator.
    - Please do not store actuator in high and low temperature and high humidity. Condensation must be avoided in using or opening the package of the actuator.
  • Others - LIGHBIG owns the professional technical team to solve problems regarding new haptic products and applications. We are always ready to build good cooperation with you and solve any problems for you.
LBV-122792
Introduction
  • 1. Features
    • Package(mm) : 12(W) x 27(L) x 9.2(H)
    • Input Voltage Range - Rated Voltage (Continues) : AC 7.4Vpp (2.6Vrms)
    • Input CurrentRange - Rated Current : Max. 200mA
    • Powerful Vibration Acceleration - 14.7Gpp (5.2Grms) @100g, Sweep
    • Fast Response Time - Response Time : 15ms or less
  • 2. Applications
    • Automotive HMI Touch Switch
    • Automotive Haptic Display
    • Infotainment Haptic Tools
    • Haptic for Sound
    • VR & AR Accessories
    • Simulators for Medical Training
  • 3. Description
    The LBV-122792 Haptic actuator is designed to output sensitive haptic feedback depending on the input waveform.
    It consumes lower power than other Haptic actuators and vibrates over a wide frequency range.
    It is also easy to control haptic feedback with quick response speed, and consistent performance makes it the best product for making the haptic application you want.
    In addition to the haptic vibration feedback, LBV-122792 can produce a sound like a speaker.

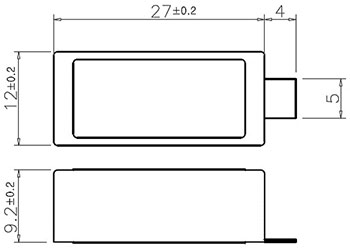

  • 4. Dimension (Unit:mm)
Specifications
1. Environmental Conditions
Standard Conditions
Parameter Value Unit
Temperature 15~35 °C
Humidity 45~85 RH %
Atmospheric pressure 1013±40 hPa
Actuator Positioning Horizontal
Operating Conditions
Parameter Value Unit
Temperature -40~85 °C
Humidity 5~95 RH %
Storage Conditions
Parameter Value Unit
Temperature -40~105 °C
Humidity 5~95 RH %
2. Product performance
Electrical Characteristics
Parameter Value Unit
Rated Voltage (Continues) 7.4 (2.6) Vpp (Vrms)
Rated Current (@Resonant Freq., Rated voltage) 200 mA
Resonant Frequency (@100g, Sweep) 120±10% Hz
Vibration Acceleration(1)
(@100g, Resonant Freq., Rated Voltage, Sweep)		 14.7(5.2)±10% Gpp (Grms)
Response Time (From 0 to 50% Acceleration) 15 ms
Life Cycle (@ 120Hz, 10Vpp, 100g)
*1time(0.5s) = On 0.013s(Sinewave 1.5cycles) + Off 0.487s		 1,000,000 times

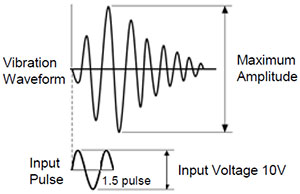

Vibration Acceleration for Haptic(2)
(@100g, 10Vpp, 120Hz Sinewave 1.5cycles)		 11.0(3.9)±10% Gpp (Grms)
Insulation Resistance (DC 100V) 10M Over Ω
Internal Resistance 12±10% Ω
(1) Measurement using sweep measurement method of BAKO equipment.
(2) Vibration Acceleration for Haptic
Mechanical Characteristics
Parameter Value Unit
Dimension (L/W/H) 12.0 / 27.0 / 9.2 mm
Unit Weight 13±1.0 g
Noise Analysis(1) Touch MAX. 35 dB
THD MAX. 25 %
Band MAX. 35 dB
(1) 'Noise Analysis' is based on calculations by the algorithms of the BaKo equipment (BK2112).
3. Pin Configurations and Functions
Pin Name Description
1 Input(+) Positive Voltage Input
2 Input(-) Negative Voltage Input
  • [ LBV-122792Top View ]
  • [ LBV-122792M 3D View ]
  • [ Vibration Direction ]

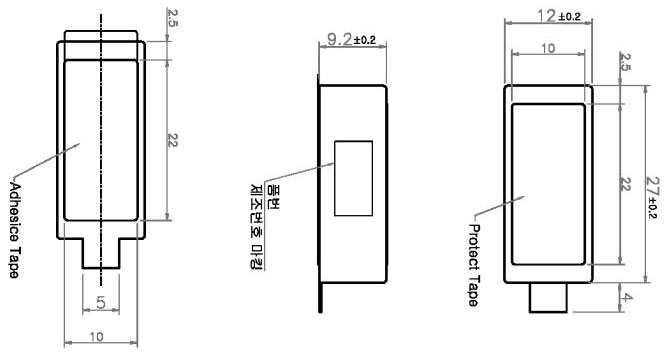

Outline Drawing
Layout (Unit:mm)
Packaging Information
1. Standard Packaging Quantity & Dimension
  • [ 1Tray : 20EA ]
  • [ Bundle : MAX 7Tray / Bundle ]
  • [ 1Box : MAX 4 Bundle / Box ]
  • Packaging Dimension Q'ty
    Tray 168mm x 250mm Max. 20EA / Tray
    Box 520mm x 350mm x 175mm Max. 560EA / Box
2. Cautions
  • Available Range - Pay attention to the voltage and current ranges applied and use the actuator based on the specifications. Otherwise the actuator life and performance would considerably be reduced.
  • Carriage of Actuator - Please move the actuator carefully to avoid any damage to the actuator body or its characteristic caused by serious collision.
  • Storage - For proper operation, storage and operating environment must not contain corrosive gases. In the mechanical structure, existence of corrosive gases may cause no vibration of actuator.
  • Attentions in Using Actuator - Do not place actuator near magnetic objects or contact the surface which will affect the performance of the actuator.
    - Please do not store actuator in high and low temperature and high humidity. Condensation must be avoided in using or opening the package of the actuator.
  • Others - LIGHBIG owns the professional technical team to solve problems regarding new haptic products and applications. We are always ready to build good cooperation with you and solve any problems for you.
LBV-101560
Introduction
  • 1. Features

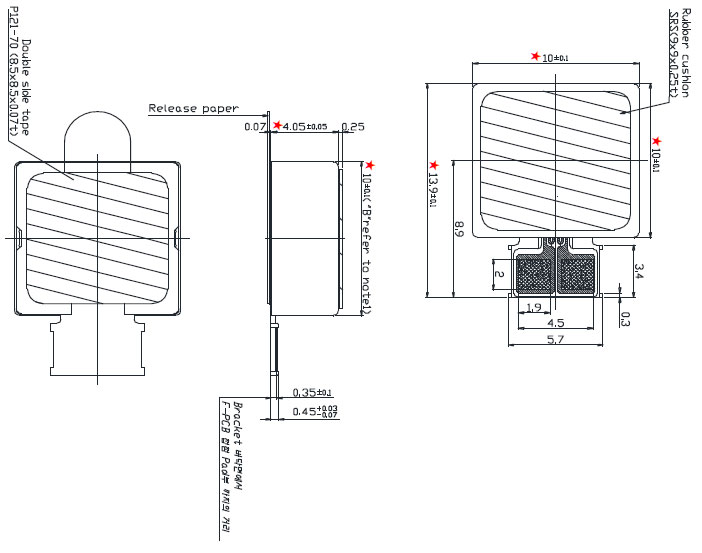

    • Package(mm) : 10(W) x 15(L) x 6.0(H)
    • Input Voltage Range - Rated Voltage (Continues) : AC 1.2 Vrms
    • Input Current Range - Rated Current : Max. 220mA
    • Powerful Vibration Acceleration - 5.5Grms @100g, Sweep
    • Rising Time : 15ms or less
  • 2. Applications
    • Automotive HMI Touch Switch
    • Automotive Haptic Display
    • Infotainment Haptic Tools
    • Haptic for Sound
    • VR & AR Accessories
    • Simulators for Medical Training
  • 3. Description
    The LBV-101560 Haptic actuator is designed to output sensitive haptic feedback depending on the input waveform.
    It consumes lower power than other Haptic actuators and vibrates over a wide frequency range.
    It is also easy to control haptic feedback with quick response speed, and consistent performance makes it the best product for making the haptic application you want.
    In addition to the haptic vibration feedback, LBV-101560 can produce a sound like a speaker.

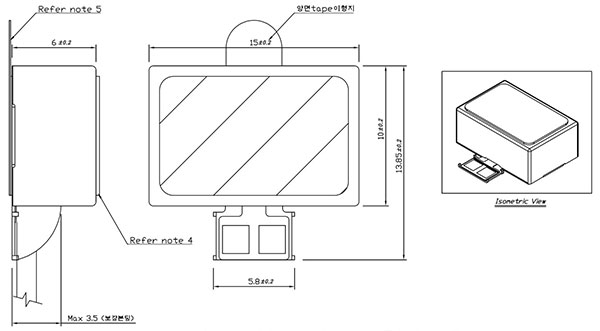

  • 4. Dimension (Unit:mm)
Specifications
1. Environmental Conditions
Standard Conditions
Parameter Value Unit
Temperature 15~35 °C
Humidity 45~85 RH %
Atmospheric pressure 1013±40 hPa
Actuator Positioning Vertical
Operating Conditions
Parameter Value Unit
Temperature -40~85 °C
Humidity 5~95 RH %
Storage Conditions
Parameter Value Unit
Temperature -40~105 °C
Humidity 5~95 RH %
2. Product performance
Electrical Characteristics
Parameter Value Unit
Rated Voltage (Continues) 1.2 Vrms
Rated Current (@Resonant Freq., Rated voltage) Max 220 mA
Resonant Frequency (@100g, Sweep) 200±10% Hz
Vibration Acceleration(1)
(@100g, Resonant Freq., Rated Voltage, Sweep)		 5.5±1.5 Grms
Rising Time (From 0 to 50% Acceleration) Max 15 ms
Falling Time (After power off, From max to 50% Acceleration) Max 25 ms
Life Cycle (@ 190Hz, 11.3Vpp, 100g)
*1time = On 0.007s(Sinewave 1.5cycles) + Off 0.493s		 1,000,000 times
Insulation Resistance (DC 100V) 10M Over Ω
Internal Resistance 6.3±10% Ω
(1) Measurement using sweep measurement method of BAKO equipment
Mechanical Characteristics
Parameter Value Unit
Dimension (L/W/H) 10.0 / 15.0 / 6.0 mm
Unit Weight 3±0.5 g
Noise Analysis(1) Touch MAX. 35 dB
THD MAX. 25 %
Band MAX. 35 dB
(1) 'Noise Analysis' (1) ‘Noise Analysis’ is based on calculations by the algorithms of the BAKO equipment.
3. Pin Configurations and Functions
Pin Name Description
1 Input(+) Positive Voltage Input
2 Input(-) Negative Voltage Input
  • [ LBV-101560 Top View ]
  • [ LBV-101560 3D View ]
  • [ Vibration Direction ]

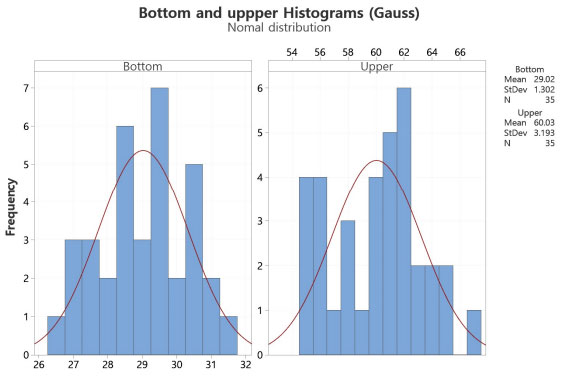

4. Gauss measurement condition
  • Producer :KANETEC
  • Model name :TESLA METER TM-701
  • Meadurement method :Place motor on the JIG first, and then move the probe to right on the magnet (max point of flux) and 1mm away from the point, measure leak amount.
Outline Drawing
Layout (Unit:mm)
Packaging Information
1. Standard Packaging Quantity & Dimension
  • [ 1Tray : 50EA ]
  • [ Bundle : MAX 20Tray / Bundle ]
  • [ 1Box : MAX 4Bundle / Box ]
  • Packaging Dimension Q'ty
    Tray 170mm x 240mm Max. 50EA / Tray
    Box 520mm x 350mm x 175mm Max. 4,000EA / Box
2. Cautions
  • Available Range - Pay attention to the voltage and current ranges applied and use the actuator based on the specifications. Otherwise the actuator life and performance would considerably be reduced.
  • Carriage of Actuator - Please move the actuator carefully to avoid any damage to the actuator body or its characteristic caused by serious collision.
  • Storage - For proper operation, storage and operating environment must not contain corrosive gases. In the mechanical structure, existence of corrosive gases may cause no vibration of actuator.
  • Attentions in Using Actuator - Do not place actuator near magnetic objects or contact the surface which will affect the performance of the actuator.
    - Please do not store actuator in high and low temperature and high humidity. Condensation must be avoided in using or opening the package of the actuator.
  • Others - LIGHBIG owns the professional technical team to solve problems regarding new haptic products and applications. We are always ready to build good cooperation with you and solve any problems for you.
LBV-101040
Introduction
  • 1. Features
    • Package(mm) : 10(W) x 10(L) x 4.0(H)
    • Input Voltage Range - Rated Voltage (Continues) : AC 2.8Vpp (1.0Vrms)
    • Input Current Range - Rated Current : Max 150mA
    • Powerful Vibration Acceleration - 9.6Gpp (3.4Grms) @100g, Sweep
    • Fast Response Time - Response Time : 15ms or less
  • 2. Applications
    • Automotive HMI Touch Switch
    • Automotive Haptic Display
    • Infotainment Haptic Tools
    • Haptic for Sound
    • VR & AR Accessories
    • Simulators for Medical Training
  • 3. Description
    The LBV-101040 Haptic actuator is designed to output sensitive haptic feedback depending on the input waveform.
    It consumes lower power than other Haptic actuators and vibrates over a wide frequency range.
    It is also easy to control haptic feedback with quick response speed, and consistent performance makes it the best product for making the haptic application you want.
    In addition to the haptic vibration feedback, LBV-101040 can produce a sound like a speaker.
  • 4. Dimension (Unit:mm)
Specifications
1. Environmental Conditions
Standard Conditions
Parameter Value Unit
Temperature 15~35 °C
Humidity 45~85 RH %
Atmospheric pressure 1013±40 hPa
Actuator Positioning Vertical
Operating Conditions
Parameter Value Unit
Temperature -40~85 °C
Humidity 5~95 RH %
Storage Conditions
Parameter Value Unit
Temperature -40~105 °C
Humidity 5~95 RH %
2. Product performance
Electrical Characteristics
Parameter Value Unit
Rated Voltage (Continues) 2.8 (1.0) Vpp (Vrms)
Rated Current (@Resonant Freq., Rated voltage) 150 mA
Resonant Frequency (@100g, Sweep) 190±10% Hz
Vibration Acceleration(1)
(@100g, Resonant Freq., Rated Voltage, Sweep)		 9.6(3.4)±10% Gpp (Grms)
Response Time (From 0 to 50% Acceleration) 15 ms
Life Cycle (@ 190Hz, 1Vrms, 100g)
*1time(0.5s) = On 0.008s(Sinewave 1.5cycles) + Off 0.492s		 1,000,000 times
Vibration Acceleration for Haptic(2)
(@100g, 8.0Vpp, 190Hz Sinewave 1.5cycles)		 7.0(2.5)±10% Gpp (Grms)
Insulation Resistance (DC 100V) 10M Over Ω
Internal Resistance 6.2±10% Ω
(1) Measurement using sweep measurement method of BAKO equipment.
(2) Vibration Acceleration for Haptic
Mechanical Characteristics
Parameter Value Unit
Dimension (L/W/H) 10.0 / 10.0 / 4.0 mm
Unit Weight 2.5±0.5 g
Noise Analysis(1) Touch MAX. 35 dB
THD MAX. 25 %
Band MAX. 35 dB
(1) 'Noise Analysis' is based on calculations by the algorithms of the BAKO equipment.
3. Pin Configurations and Functions
Pin Name Description
1 Input(+) Positive Voltage Input
2 Input(-) Negative Voltage Input
  • [ LBV-101040 Top View ]
  • [ LBV-101040 3D View ]
  • [ Vibration Direction ]
Outline Drawing
Layout (Unit:mm)
Packaging Information
1. Standard Packaging Quantity & Dimension
  • [ 1 ray : 50EA ]
  • [ Bundle : MAX 20Tray / Bundle ]
  • [ 1Box : MAX 4Bundle / Box ]
  • Packaging Dimension Q'ty
    Tray 170mm x 240mm Max. 50EA / Tray
    Box 520mm x 350mm x 175mm Max. 4,000EA / Box
2. Cautions
  • Available Range - Pay attention to the voltage and current ranges applied and use the actuator based on the specifications. Otherwise the actuator life and performance would considerably be reduced.
  • Carriage of Actuator - Please move the actuator carefully to avoid any damage to the actuator body or its characteristic caused by serious collision.
  • Storage - For proper operation, storage and operating environment must not contain corrosive gases. In the mechanical structure, existence of corrosive gases may cause no vibration of actuator.
  • Attentions in Using Actuator - Do not place actuator near magnetic objects or contact the surface which will affect the performance of the actuator.
    - Please do not store actuator in high and low temperature and high humidity. Condensation must be avoided in using or opening the package of the actuator.
  • Others - LIGHBIG owns the professional technical team to solve problems regarding new haptic products and applications. We are always ready to build good cooperation with you and solve any problems for you.
